Looking for a compact, efficient, and reliable DC motor controller for your next project? Whether it’s an EV conversion, RC boat, industrial fan, or a DIY robotics platform, our versatile DC Motor Controller offers plug & play convenience with professional-grade features.

Adaptive Control for Any Setup

Enjoy total control with support for multiple input methods: standard potentiometer, hall throttle (0.8–4.2V), joystick mode, direct PWM (0–95%), RC PWM signal (1.5ms ±1ms), or full serial communication via TX/RX for advanced customization. This controller fits any control scenario, from manual analog setups to automated systems.

Built-in Safety & Current Limiting

Prevent overload and extend the life of your motor and controller with our smart current limit function. Set the continuous current from 0–50A, with peak support up to 100A. The controller will automatically limit output to protect your system from damage and heat-related issues.

Stay Cool Under Pressure

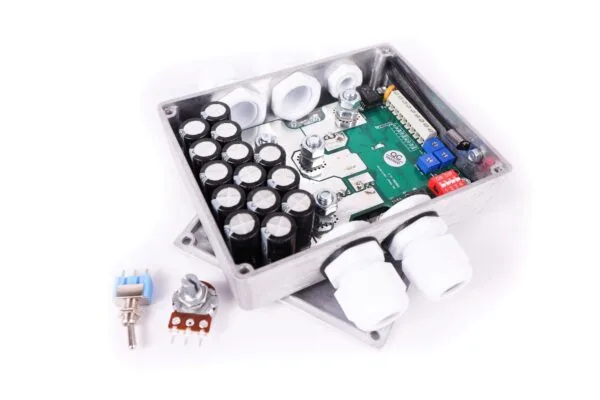

The Crocodile FR5050 50V DC Motor Speed Controller 100A includes overheat protection (70°C / 158°F) to avoid damage under heavy use. For maximum performance, we recommend using a heatsink when operating at high output. Though compact and efficient, active cooling ensures stable performance and long-term reliability.

Energy Recovery with Regenerative Braking

Equipped with 4-quadrant motor control, this controller supports regenerative braking in both directions. Recover energy on deceleration and feed it back into your battery—ideal for electric vehicles, automated transport, or eco-friendly builds.

Key Features of the Crocodile FR5050 50V DC Motor Speed Controller 100A

• Reversible H-Bridge DC motor controller
• 4 control modes: potentiometer, hall throttle, joystick, PWM, RC PWM
• Fully serial-controllable with customizable parameters via TX/RX
• 4-quadrant operation for driving & regenerating in both directions
• High-speed 32-bit Cortex processor
• Adjustable duty cycle: 0–100%
• 18kHz switching frequency for ultra-smooth control
• Overheating protection at 70°C / 158°F
• Universal 0–5V speed input (compatible with PLC, analog, PWM, RC)
• Regenerative braking functionality
• Adjustable ramp-up acceleration: 0–40s
• Continuous current: 0–50A, peak: 100A
• Input voltage range: 6–50V DC

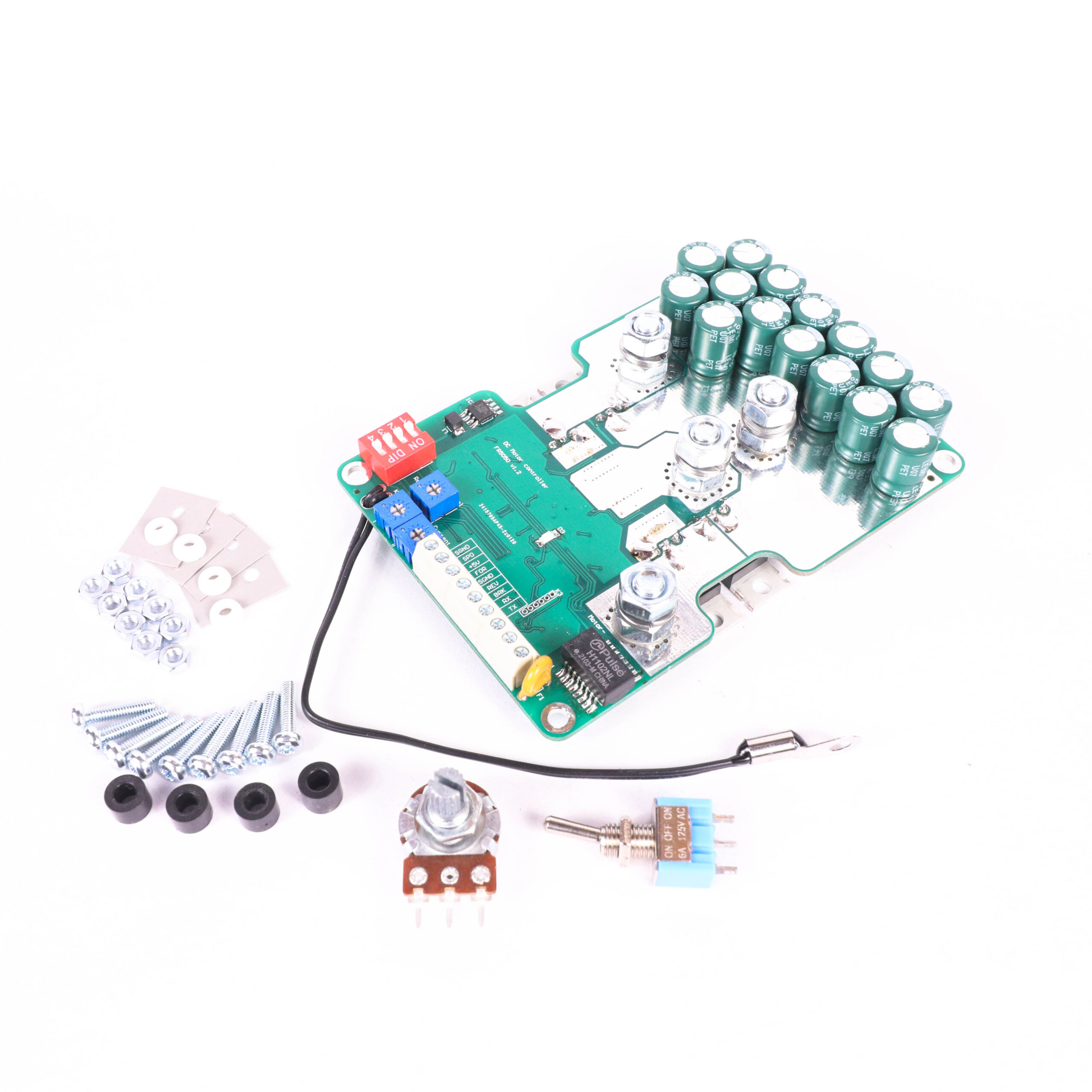

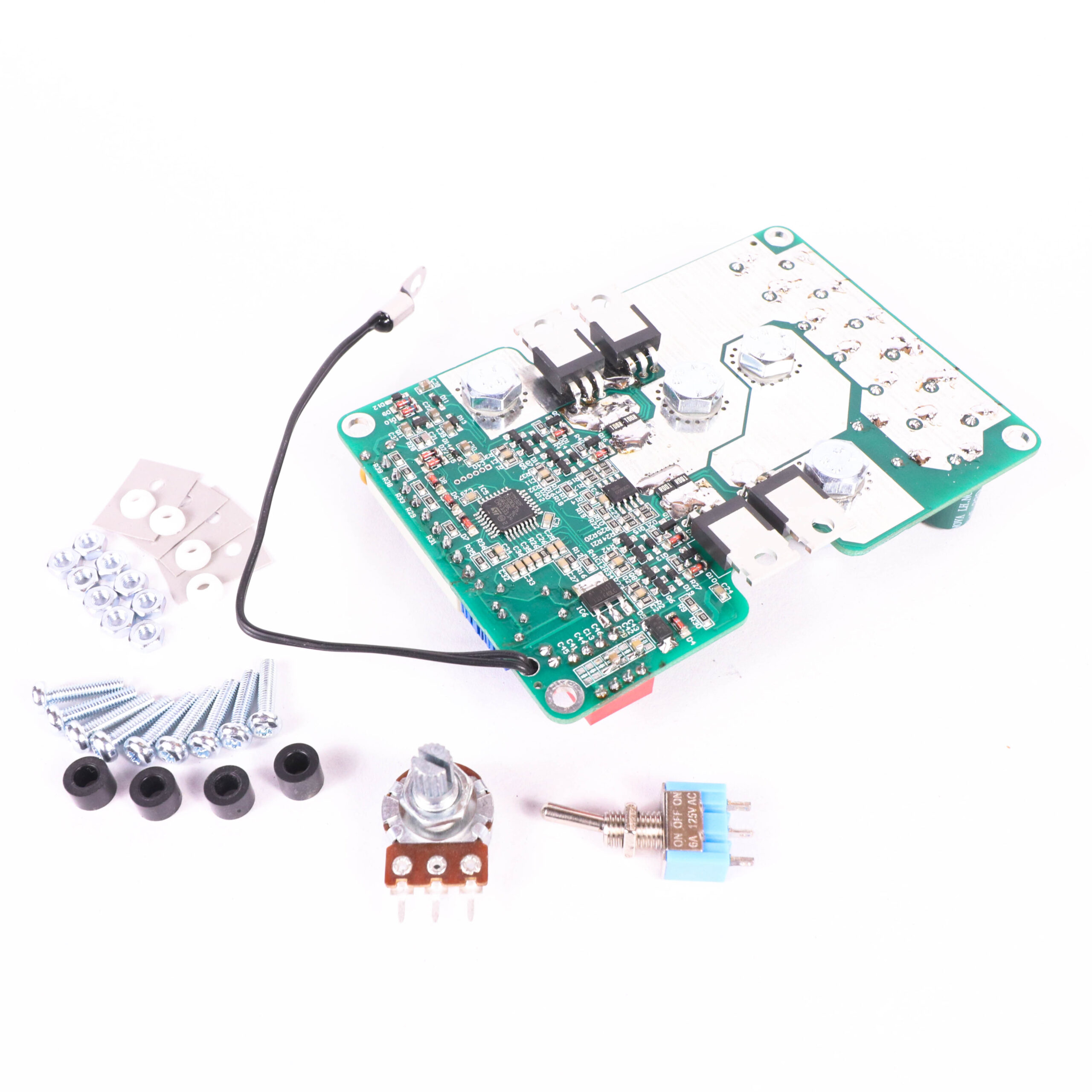

• Compact PCB size: 106 × 75 × 25 mm | Weight: 170g (no heatsink)

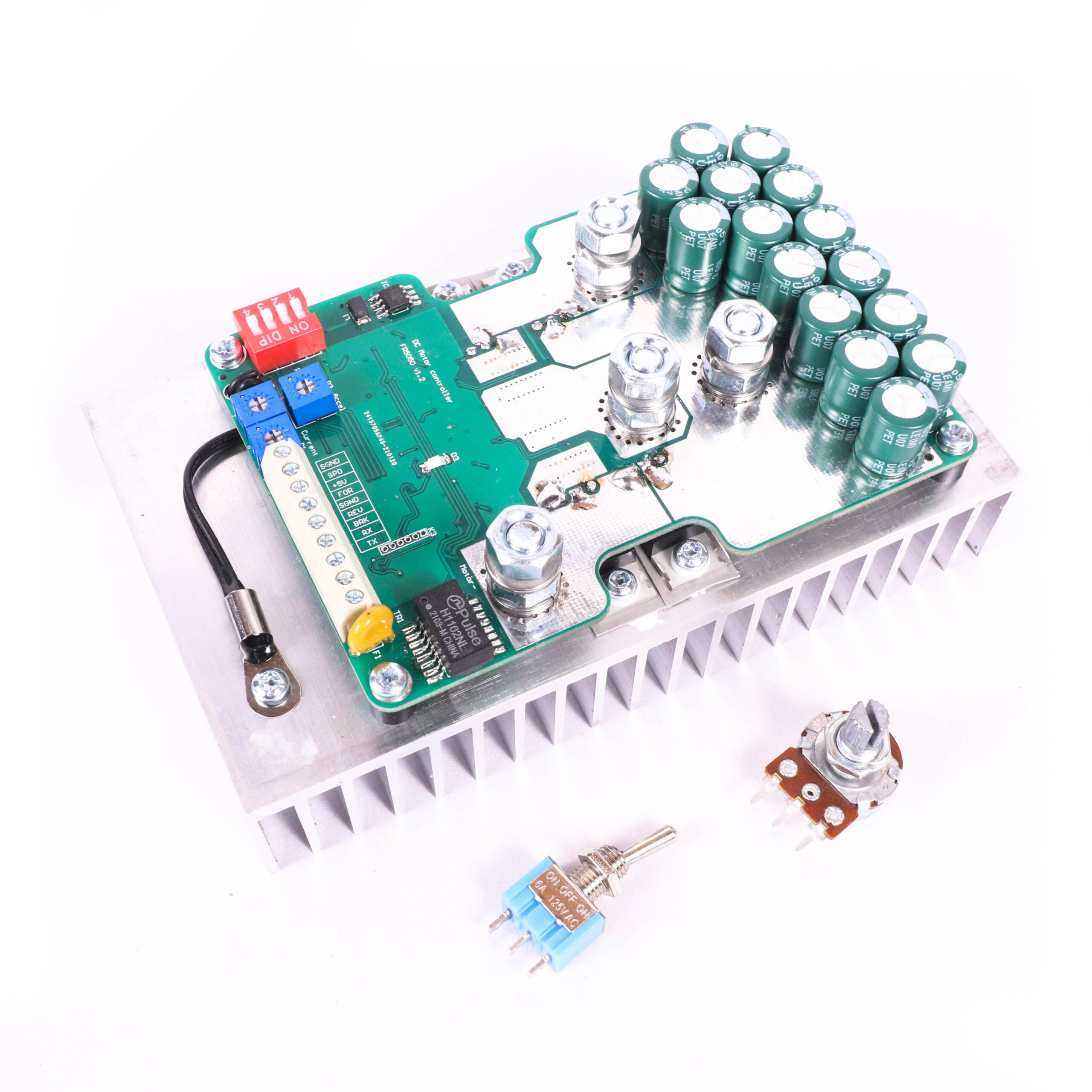

• Heatsink recommended for full output performance

Designed for Efficiency and Versatility

Whether you’re crafting a lightweight e-scooter controller, tuning an RC vehicle, or building a low-voltage automation project, this highly adaptable, low-profile, and feature-rich controller is engineered to exceed your expectations.

Boost your project’s capabilities with our cutting-edge Crocodile FR5050 50V DC Motor Speed Controller 100A – where smart design meets maximum control.
